ESP32-C5 Research

(updated 05172025)

Notes

supported only in ESP-IDF 5.3+
Active development in ESP-IDF implementing features
Currently must pass --preview to idf.py (idf.py --preview) to use the ESP32-C5 in ESP-IDF even from master

Docs

PDFs

Linked Docs

ESP-IDF

Hardware

Features

Memory Map

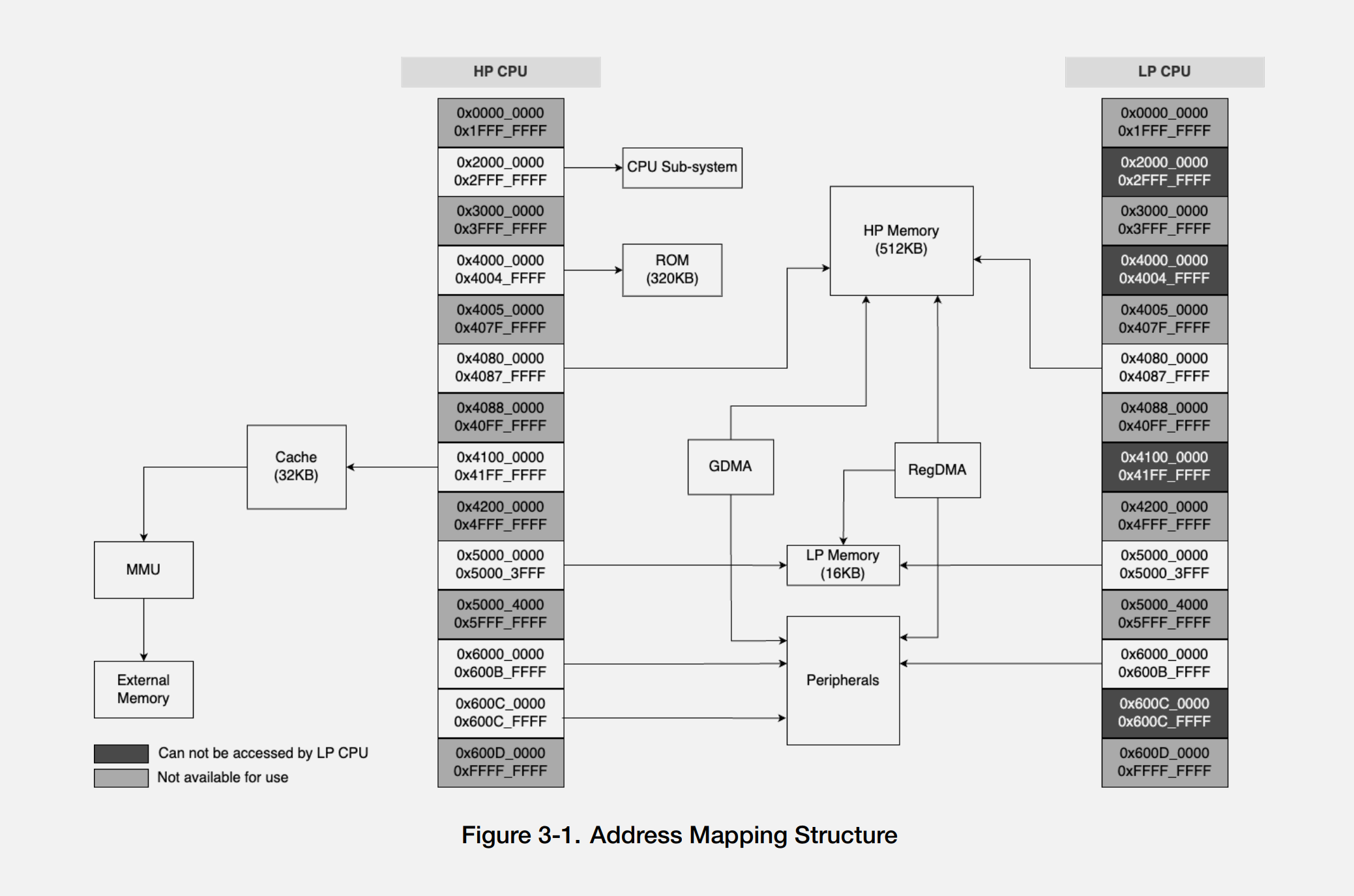

Figure 3.1.5 Address Mapping Structure Page 32 ESP32_C5_Chip_Datasheet_V0.1_PRELIMINARY_EN.pdf

Named Regions

Name	Start	End	Length
CPU-Sub-System	0x2000_0000	0x2FFF_FFFF	0xFFF_FFFF
ROM	0x4000_0000	0x4004_FFFF	0x4_FFFF
HP-Memory	0x4080_0000	0x40FF_FFFF	0x7_FFFF
Cache-MMU-External-Memory	0x4100_0000	0x41FF_FFFF	0xFF_FFFF
LP-Memory	0x5000_0000	0x5000_3FFF	0x3_FFF
Peripherals	0x6000_0000	0x600B_FFFF	0xB_FFFF
Peripherals	0x600C_0000	0x600B_FFFF	0xFFFF

Info From Esp-IDF Tools

esptool.py --chip auto chip_id/read_mac/flash_id/read_flash_status
Chip: ESP32-C5 (revision v1.0)
Features: WiFi 6, BT 5, IEEE802.15.4
Crystal: 48MHz

esptool.py --chip auto get_security_info

Security Information:
=====================
Flags: 0x00000000 (0b0)
Key Purposes: (0, 0, 0, 0, 0, 0, 19)
  BLOCK_KEY0 - USER/EMPTY
  BLOCK_KEY1 - USER/EMPTY
  BLOCK_KEY2 - USER/EMPTY
  BLOCK_KEY3 - USER/EMPTY
  BLOCK_KEY4 - USER/EMPTY
  BLOCK_KEY5 - USER/EMPTY
Chip ID: 23
API Version: 2
Secure Boot: Disabled
Flash Encryption: Disabled
SPI Boot Crypt Count (SPI_BOOT_CRYPT_CNT): 0x0

Instruction Set

High Power (HP) CPU RISC-V 32-bit (RV32IMAC)

Base Integar Instruction Set 32-bit (I)
Multiplication and Divison (M)
Atomic Instructions (A)
Compressed Instructions (C)
- Zc extensions (Zcb, Zcmp, and Zcmt)
Custom Hardware Loop Instructions (Xhwlp)

Low Power (LP) CPU
RISC-V 32-bit (RV32IMAC)
